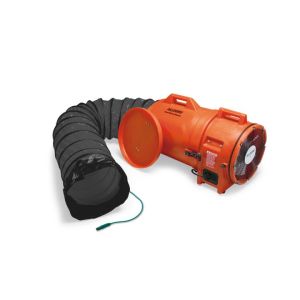

Allegro 9548 12″ Axial Explosion-Proof (EX) Plastic Blower

GENERAL DESCRIPTION:
High output from a compact explosion-proof axial blower, designed for easy use and
storage without sacrificing airflow. Available as blower only or complete unit with 15’
(4.57 m) or 25’ (7.62 m) of ducting and storage canister. Canister attaches to intake or
output of blower for suction or ventilation.

CONSTRUCTION:
• Polyethylene housing and canister assembly
• Lightweight, corrosion-, UV- and chemical-resistant
• Super quiet, in “safety orange” housing
• Carry handle molded into blower and canister housing
• Steel powder coated grill
• NOTE: EX blowers require an explosion-proof socket (9503-03)

MOTOR:
HP: 1/3 HP
Voltage/Hz: 120V AC, 60 Hz, Single Phase
RPM: 3250 (120 Volts, 60 Hz)
Amps: 2.2A
Cord: 25’ (7.62 m) SJOOW 18/3 AWG
Plug: NEMA 5-20P

FAN:
• Polypropylene six-blade fan
STATICALLY CONDUCTIVE DUCTING: (included on 9548-15 and 9548-25 models)
• Black single-ply lightweight vinyl/polyester, coated with neoprene 250° F (121.1° C) temperature resistant
• Non-collapsible retractable design, Class 1 hard drawn spring steel wire helix
• Retractable, non-collapsible design, Single-ply
• Spring steel wire helix
• WARNING: When using statically conductive ducting, the integrated grounding wire must be
properly grounded to the blower chassis OR linked to any additional grounding wire or duct used
(as shown). Refer to User Manual for detailed instructions.
