MSA G1 Industrial SCBA

MSA G1 Industrial SCBA

Because of the number of options and configurations, we ask that you call us at (800) 213-7092 and ask for the instrument department. Someone there will be glad to help you and get you a quote.

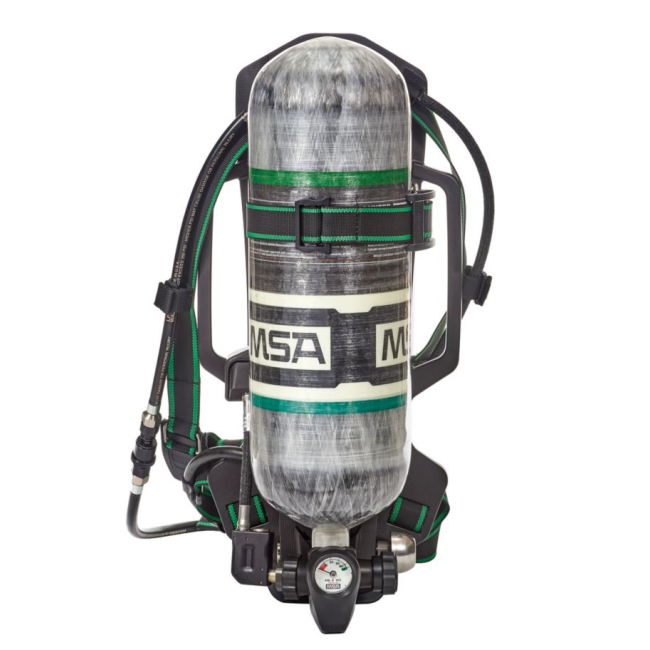

This self-contained breathing apparatus (SCBA) contains many unique features, and is built to reduce stress and fatigue while improving safety and performance.

G1 Facepiece

Lightweight & Low-Profile

1. Enhance situational awareness and visibility through a wide field of view
2. Prevent potential cross-contamination when units are shared through unique mask design, which restricts exhaled air from entering the mask-mounted regulator
3. Open port design allows for lower breathing resistance both on and off air with the goal of reducing fatigue
4. Enable short-range communication with mechanical speaking diaphragm
5. Meet a variety of user needs with head harness options available in Kevlar, rubber, or polyester

G1 Carrier and Harness Assembly

Customized Comfort & Fit

1. Clean quickly with easy-to-remove soft goods
2. Improve harness durability in tough environments with nanosphere-coated webbing to improve resistance to
   water and chemical exposure
3. Increas comfort with optional shoulder pads and lumbar support to help reduce fatigue
4. Improve ease of donning through shoulder pad placement to reduce twisting and increase comfort
5. Choose either nylon or Kevlar harness components and cylinder bands to meet the needs of your work
   environment

Cylinders

Multiple Options

• Choose from two different low-pressure (2216 psig), 30-minute-rated cylinders; or
• Four high-pressure (4500 psig) carbon-wrapped cylinders in 30-, 45- or 60-minute durations.

Cylinder Connection

• Choose from a quick-connect cylinder attachment for easy change out, or standard threaded connection
• The color-coded band on first stage reducer provides an at-glance indicator as to whether the system is high or low-pressure

Shoulder-mounted Quick-Fill System

EBS Accessory

• This optional connection allows for SCBA cylinder refill from a mobile compressor or cascade system
• Allows transfilling between two SCBA wearers, providing an emergency breathing system in IDLH atmospheres

Air-Line Attachment

The optional air-line attachment creates a second port for air-line connection to an independent air source, such as an air compressor or cascade system, to conserve cylinder air for emergency escape.
